Ubiquiti UISP

Ubiquiti UISP is a network management platform that provides centralized monitoring, configuration, and device management for wireless and wired network infrastructure.

Use Cases the Adapter Solves

• Improve network asset visibility: View devices managed in Ubiquiti UISP alongside data from other asset sources in Axonius.
• Support device inventory reviews: Use device identity, model, serial number, and hostname information to review network inventory.
• Track device status and location: Review device status, last-seen time, site, and location details when available.

Asset Types Fetched

• Devices

Data Retrieved through the Adapter

Devices

• Device Name, Hostname, Serial Number, Device Model

Before You Begin

Required Ports

• TCP port 443 (HTTPS), or TCP port 80 when the UISP Instance URL uses HTTP

Authentication Methods

API Token Authentication: The adapter sends the API token in the x-auth-token request header when it retrieves devices.

APIs

Axonius uses the Ubiquiti UISP API. The following endpoint is called to retrieve device data:

• GET /nms/api/v2.1/devices

Required Permissions

The API token must be associated with an account that can retrieve device data from the UISP API.

Note: The implementation does not identify exact UISP permission names. Confirm the required permission names and scopes with your Ubiquiti UISP administrator.

Supported From Version

Supported from Axonius version 9.0.7

Setting Up Ubiquiti UISP to Work with Axonius

1. Sign in to your Ubiquiti UISP instance.
2. Create or obtain an API token that can retrieve device data.
3. Copy the UISP instance URL and API token for use when you create the Axonius adapter connection.

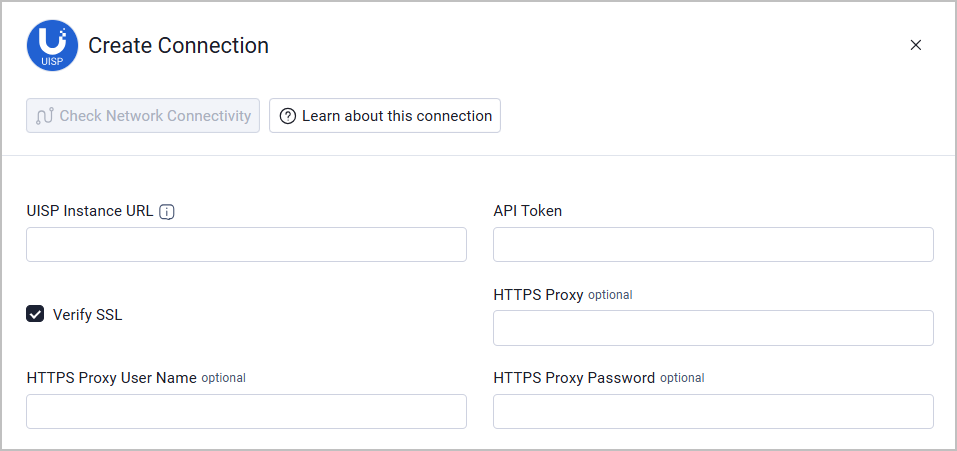

Connecting the Adapter in Axonius

1. Navigate to the Adapter Catalog, search for Ubiquiti UISP, and select the adapter.
2. Click Add Connection.
3. Provide the following parameters.

Required Parameters

1. UISP Instance URL - Enter the base URL of the UISP instance, including http:// or https://. Do not append an API endpoint. Example: https://uisp.example.com/
2. API Token - Enter the API token that Axonius uses to authenticate to UISP.

Optional Parameters

1. Verify SSL - Select whether to verify the server SSL certificate against the CA database inside Axonius. For more details, see SSL Trust & CA Settings.
2. HTTPS Proxy - Connect the adapter through a proxy instead of directly connecting to the UISP instance.
3. HTTPS Proxy User Name - Enter the user name for the HTTPS proxy.
4. HTTPS Proxy Password - Enter the password for the HTTPS proxy.

To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.
