ControlUp

ControlUp is a digital workspace management platform that provides real-time monitoring and troubleshooting for virtual desktop infrastructure (VDI) environments.

Asset Types Fetched

Devices, Aggregated Security Findings, Users, Software, SaaS Applications

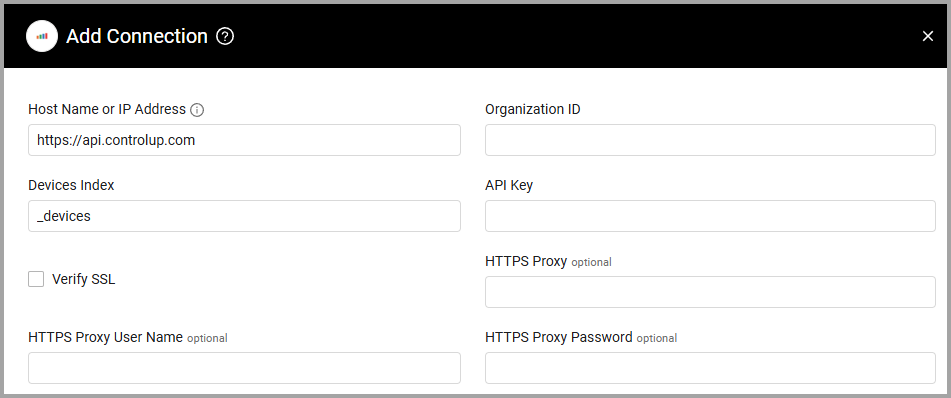

Parameters

  1. Host Name or IP Address (required, default: https://api.controlup.com) - The hostname or IP address of the ControlUp server that Axonius can communicate with via the Required Ports.

  2. Organization ID (required) - Specify your ControlUp organization ID.

  3. Devices Index _(required, default: devices) - Enter an index of devices to fetch.

  4. API Key (required) - An API Key associated with a user account that has the Required Permissions to fetch assets.

  5. Verify SSL - Select whether to verify the SSL certificate of the server against the CA database inside of Axonius. For more details, see SSL Trust & CA Settings.

  6. HTTPS Proxy (optional) - Connect the adapter to a proxy instead of directly connecting it to the domain.

  7. HTTPS Proxy User Name (optional) - The user name to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.

  8. HTTPS Proxy Password (optional) - The password to use when connecting to the server using the HTTPS Proxy.

To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.


Advanced Settings

📘

Note

Advanced settings can either apply to all connections for this adapter, or to a specific connection. Refer to Advanced Configuration for Adapters.

  1. Enrich Devices Endpoint with Software Endpoint - Toggle on to enrich the devices endpoint with the software endpoint. If this setting is enabled, the settings below may be configured.
    • Software Index (optional) - Enter an index of software to fetch.
  2. Enrich Devices Endpoint with Vulnerabilities Endpoint - Toggle on to enrich the devices endpoint with the vulnerabilities endpoint. If this setting is enabled, the settings below may be configured.
    • Vulnerabilities Index (optional) - Enter an index of vulnerabilities to fetch.

  4. Enrich Devices Endpoint with App Usage Single Endpoint - Toggle on to enrich devices with per-user application usage data. If this setting is enabled, the settings below may be configured.
    • Query time from - Enter the number of days ago from which to start querying application usage data. Default: 30.
    • Query time to - Enter the number of days ago up until which to query application usage data. Default: 0 (today).
  5. App Usage All - applies context on the following endpoints: App Usage Single - This fetches all application usage data from ControlUp and supplies it to the App. Usage Single endpoint. The following settings control the query time range.
    • Query time from - Enter the number of days ago from which to start querying application usage data. Default: 30.
    • Query time to - Enter the number of days ago up until which to query application usage data. Default: 0 (today).
  6. Fetch Devices of sub type compliance devices from Compliance Devices -
  7. Enrich Compliance Devices with Compliance Vulnerabilities Endpoint - Enable this option to use ControlUp's Compliance API for vulnerability data instead of the Edge API. The Compliance API provides significantly richer vulnerability data including CVSS v2.0/v3.0 scores, EPSS probability scores, remediation status, and detailed timestamps.
📘

Note

To learn more about Adapter Configuration tab advanced settings, see Adapter Advanced Settings.

APIs

Axonius uses the ControlUp APIs.

Endpoints Used:

  • Edge API (Default) - GET /edge/api/data/$vulnerabilities_index - Provides basic vulnerability data.
  • Compliance API (Optional) - GET /compliance/devices and GET /compliance/devices/{device_id}/vulnerabilities - Provides richer vulnerability data

Required Ports

Axonius must be able to communicate with the value supplied in Host Name or IP Address via the following ports:

  • TCP port 443

Version Matrix

This adapter was only tested with the versions marked as supported, but may work with other versions. Contact Axonius Support if you have a version that is not listed, which is not functioning as expected.

VersionSupportedNotes
API v1Yes--

Supported From Version

Supported from Axonius version 6.1.55.0
