AlgoSec Firewall Analyzer
- Updated on 22 Aug 2023
- 1 Minute to read
AlgoSec Firewall Analyzer (AFA) is a device analysis solution that builds a model of users' network security postures and Layer 3 connectivity.
Types of Assets Fetched
This adapter fetches the following types of assets:

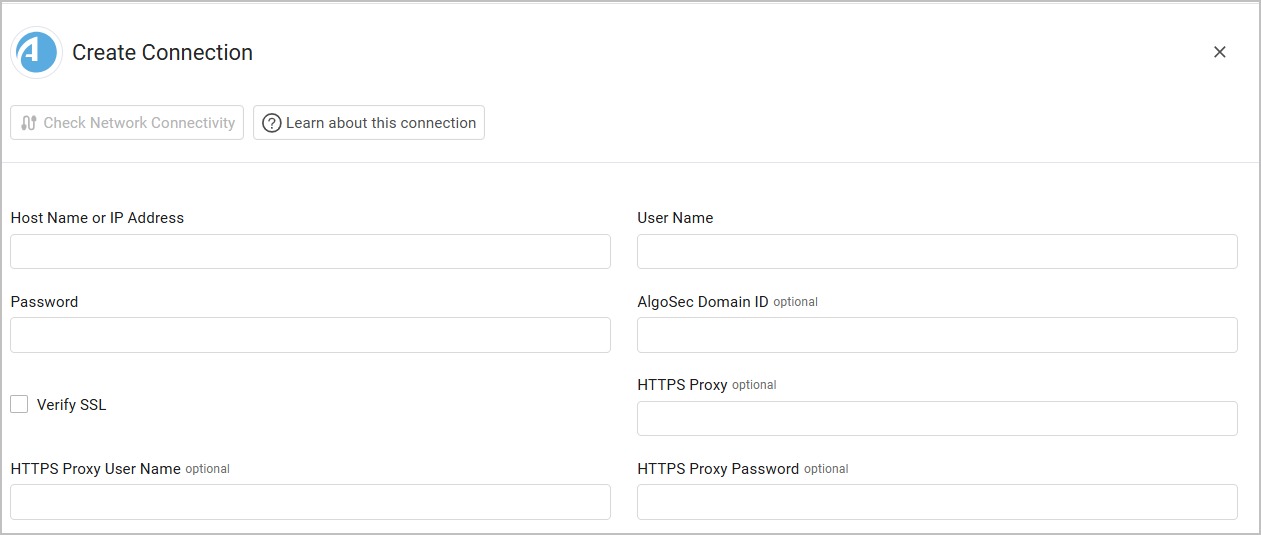

Host Name or IP Address (required) - The hostname or IP address of the AFA server that Axonius can communicate with via the Required Ports.
User Name and Password (required) - The credentials for a user account that has the Required Permissions to fetch assets.
AlgoSec Domain ID (optional) - Enter your unique domain ID, obtainable from the Domains tab in the AlgoSec dashboard.
Verify SSL - Select whether to verify the SSL certificate of the server against the CA database inside of Axonius. For more details, see SSL Trust & CA Settings.
HTTPS Proxy (optional) - Connect the adapter to a proxy instead of directly connecting it to the domain.
HTTPS Proxy User Name (optional) - The user name to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.
HTTPS Proxy Password (optional) - The password to use when connecting to the server using the HTTPS Proxy.
To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.
Advanced settings can either apply for all connections for this adapter, or you can set different advanced settings and/or different scheduling for a specific connection, refer to Advanced Configuration for Adapters.
- Fetch users (default: True) - By default this adapter fetches users. Clear this option to not fetch users.
To learn more about Adapter Configuration tab advanced settings, see Adapter Advanced Settings.
Axonius uses the ASMS API.
Axonius must be able to communicate with the value supplied in Host Name or IP Address via the following ports:
- TCP port 80
- TCP port 443
The value supplied in User Name must have Read-only permissions to fetch assets.
This adapter was only tested with the versions marked as supported, but may work with other versions. Contact Axonius Support if you have a version that is not listed, which is not functioning as expected.
Supported From Version
Supported from Axonius version 4.7
