Gigamon GigaVUE-FM (Fabric Manager)

Gigamon GigaVUE-FM (Fabric Manager) delivers management and monitoring of all physical and virtual nodes across your on-premises, virtual and public-cloud deployments.

Types of Assets Fetched

This adapter fetches the following types of assets:

• Devices

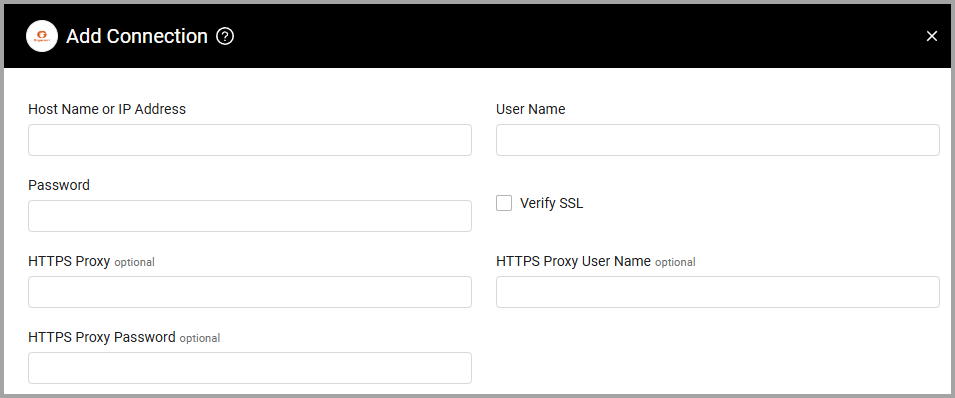

Parameters

1. Host Name or IP Address (required) - The hostname or IP address of the GigaVUE-FM server that Axonius can communicate with via the Required Ports.
2. User Name and Password (required) - The credentials for a Read-Only user account that has the permissions to fetch assets.
3. Verify SSL (required, default: False) - Verify the SSL certificate offered by the value supplied in Host Name or IP Address. For more details, see SSL Trust & CA Settings.
   • If enabled, the SSL certificate offered by the value supplied in Host Name or IP Address will be verified against the CA database inside of Axonius. If the SSL certificate can not be validated against the CA database inside of Axonius, the connection will fail with an error.
   • If disabled, the SSL certificate offered by the value supplied in Host Name or IP Address will not be verified against the CA database inside of Axonius.
4. HTTPS Proxy (optional, default: empty) - A proxy to use when connecting to the value supplied in Host Name or IP Address.
   • If supplied, Axonius will utilize the proxy when connecting to the value supplied in Host Name or IP Address.
   • If not supplied, Axonius will connect directly to the value supplied in Host Name or IP Address.
5. HTTPS Proxy User Name (optional, default: empty) - The user name to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.
   • If supplied, Axonius will authenticate with this value when connecting to the value supplied in HTTPS Proxy.
   • If not supplied, Axonius will not perform authentication when connecting to the value supplied in HTTPS Proxy.
6. HTTPS Proxy Password (optional, default: empty) - The password to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.
   • If supplied, Axonius will authenticate with this value when connecting to the value supplied in HTTPS Proxy.
   • If not supplied, Axonius will not perform authentication when connecting to the value supplied in HTTPS Proxy.
7. For details on the common adapter connection parameters and buttons, see Adding a New Adapter Connection.


APIs

Axonius uses the GigaVUE-FM REST API.

Required Ports

• HTTPS port 443
