Software Profile
- Updated on 11 May 2023
- 2 Minutes to read
- Print
- DarkLight
- PDF

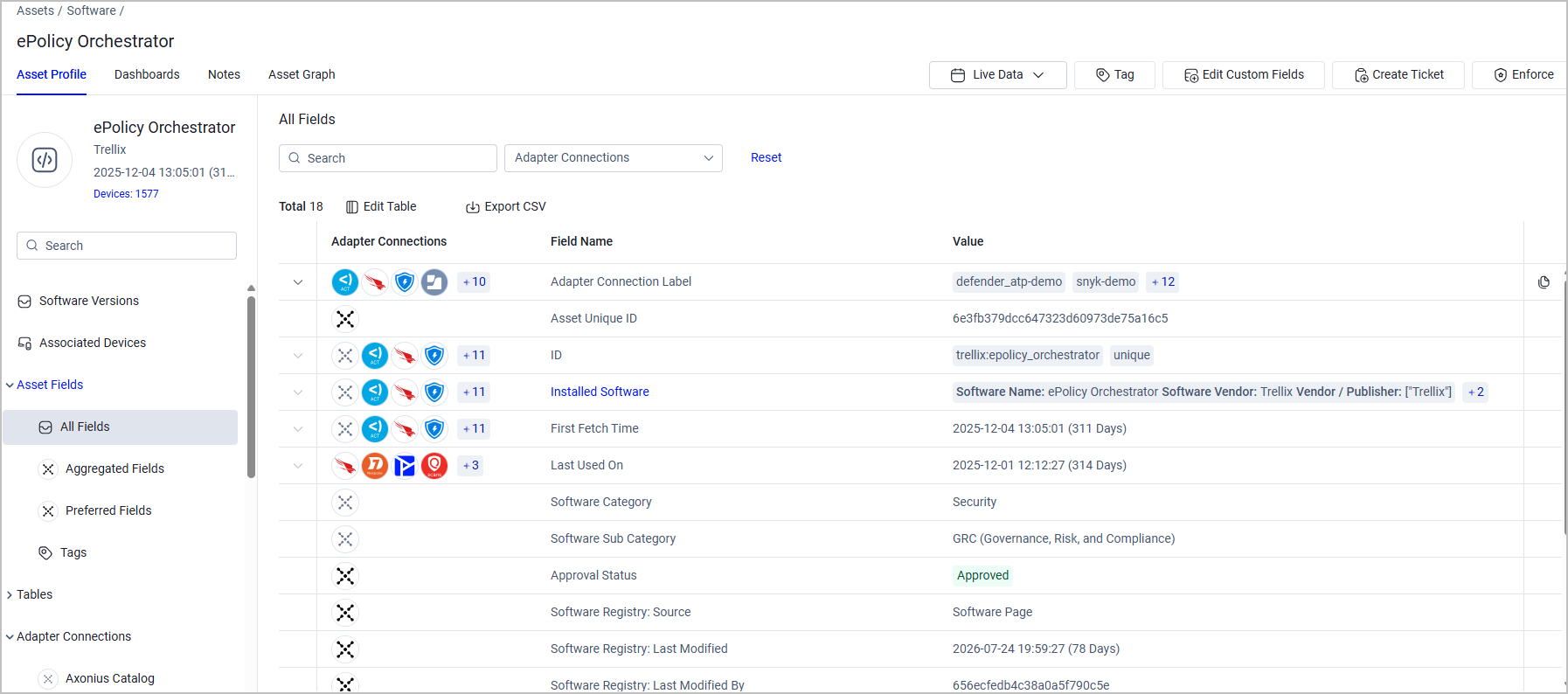

The Software Profile page provides detailed information about the Software selected. Click on a software item, the Software Profile page opens.
The Software Profile page displays 2 tabs:
- Software Versions
- Associated Devices
Software Versions
The Software Versions page shows the following information:
- Adapter Connections - Shows the adapter connections from which the software version was fetched. Hover over a field to see the adapter or all the adapters that this software version comes from. Click the arrow to see all adapters that fetched the field, and its value on each of them.
- Software Version - the software version.
- Software Name - the software name.
- Software Vendor - the software vendor.
- Device Count - The number of devices on which this software version was found. Click on the device count to view all of the devices with this software version on the Devices page.
Filter Detailed Software Display
You can filter the detailed software versions as follows:
Adapter Connections - Select one or more adapter connections.
Software Version - Select one or more Software versions to display.
Software Name - Select one or more Software names.
Software Vendor - Select one or more vendors.
Click Reset to clear the filters.
Software Information
The side pane shows profile information about the Software selected. This information presents the name of the Software found to help you understand what the Software asset is that you are looking at.
For each Software the following information is displayed (when available).
- The Vendor name
- The Software name.
If there are no values in these fields, they are not displayed.
Associated Devices
Adapter Connections - Shows the adapter connections from which the device was fetched. Hover over a field to see the adapter or all the adapters that this software comes from.
Click the arrow to see all adapters that fetched the field, and its value on each of them.
- Preferred Host Name - the value of the Preferred Host Name.
- Installed Software: Software Version - the software version. If there is more than one version the number of additional values. If more than one version is available, the first few versions are displayed with the number of additional values available shown in blue. Click to copy the version.
Filtering and Searching
You can filter the Associated Devices page as follows:
Search - enter any value by which to search for an adapter connection or software version (this is free text search).
- Adapter Connections - Select one or more adapter connections.
- Software Versions - Select one or more software versions to display.
Click Clear All to clear the filters.
Click View in Devices to open the page on the Devices page filtered by the specific software entity you chose and any other filters you selected.
