Extreme Networks ExtremeControl is a Network Access Control (NAC) solution that provides role-based access controls and reporting on user activity across all devices.

Types of Assets Fetched

This adapter fetches the following types of assets:

  • Devices

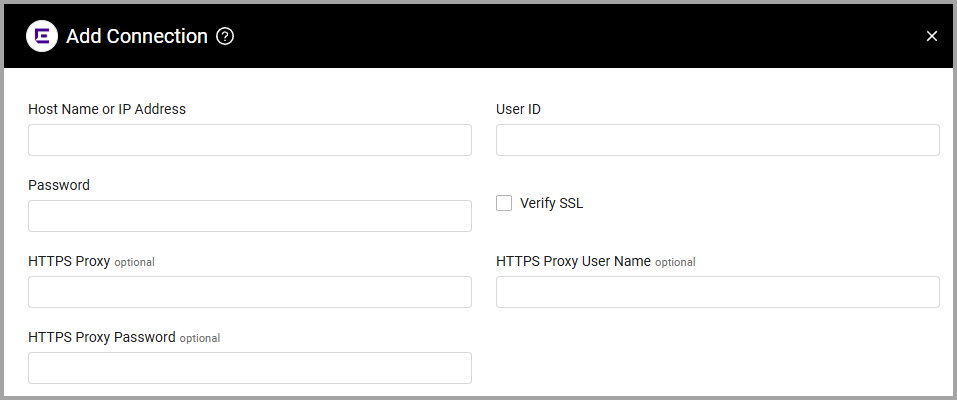

Parameters

  1. Host Name or IP Address (required) - The hostname or IP address of the Extreme Networks ExtremeControl server.
  2. User ID and Password (required) - The credentials for a user account that has the Required Permissions to fetch assets.
  3. Verify SSL (required, default: False) - Verify the SSL certificate offered by the value supplied in Host Name or IP Address. For more details, see SSL Trust & CA Settings.
    • If enabled, the SSL certificate offered by the value supplied in Host Name or IP Address will be verified against the CA database inside of Axonius. If the SSL certificate can not be validated against the CA database inside of Axonius, the connection will fail with an error.
    • If disabled, the SSL certificate offered by the value supplied in Host Name or IP Address will not be verified against the CA database inside of Axonius.
  4. HTTPS Proxy (optional, default: empty) - A proxy to use when connecting to the value supplied in Host Name or IP Address.
    • If supplied, Axonius will utilize the proxy when connecting to the value supplied in Host Name or IP Address.
    • If not supplied, Axonius will connect directly to the value supplied in Host Name or IP Address.
  5. HTTPS Proxy User Name (optional, default: empty) - The user name to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.
    • If supplied, Axonius will authenticate with this value when connecting to the value supplied in HTTPS Proxy.
    • If not supplied, Axonius will not perform authentication when connecting to the value supplied in HTTPS Proxy.
  6. HTTPS Proxy Password (optional, default: empty) - The password to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.
    • If supplied, Axonius will authenticate with this value when connecting to the value supplied in HTTPS Proxy.
    • If not supplied, Axonius will not perform authentication when connecting to the value supplied in HTTPS Proxy.
  7. For details on the common adapter connection parameters and buttons, see Adding a New Adapter Connection.


APIs

Axonius uses the ExtremeCloud REST API.

Required Permissions

The value supplied in User ID must have read access to devices.

You must have administrator credentials to log in to this server. Administrators with read-only privileges can make GET calls using a REST-API consuming program, but only fully privileged accounts can be used to make configuration changes through the REST API.
