Illumio Core

  • Updated on Apr 24, 2025
  • Published on Mar 8, 2022
  • 2 minute(s) read
Prev Next

Illumio Core is a security platform that provides micro-segmentation to prevent unauthorized lateral movement within networks.

Types of Assets Fetched

This adapter fetches the following types of assets:

  • Devices, Users, Load Balancers, Containers, Network/Firewall Rules, Alerts/Incidents

Related Enforcement Actions

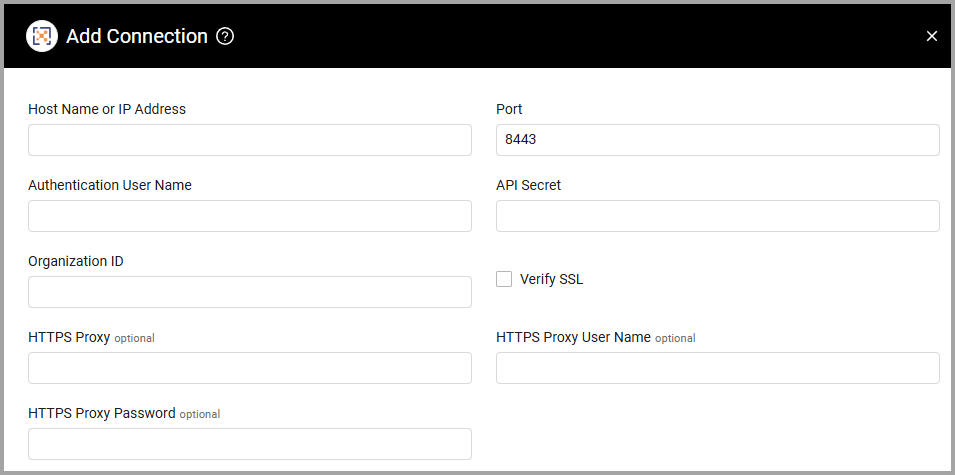

Parameters

  1. Host Name or IP Address (required) - The hostname or IP address of the Illumio Core server that Axonius can communicate with via the Required Ports.

  2. Authentication User Name (required) - The credentials for a user account that has the Required Permissions to fetch assets. This is a randomized name generated when a user creates an API key.

  3. API Secret (required) - An API Key associated with a user account that has the Required Permissions to fetch assets.

  4. Organization ID *(required) - Auto generated when the API Secret is created.

  5. Verify SSL - Select whether to verify the SSL certificate of the server against the CA database inside of Axonius. For more details, see SSL Trust & CA Settings.

  6. HTTPS Proxy (optional) - Connect the adapter to a proxy instead of directly connecting it to the domain.

  7. HTTPS Proxy User Name (optional) - The user name to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.

  8. HTTPS Proxy Password (optional) - The password to use when connecting to the server using the HTTPS Proxy.

To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.



Advanced Settings

Note:

Advanced settings can either apply to all connections for this adapter, or to a specific connection. Refer to Advanced Configuration for Adapters.

  1. Fetch workloads (default: true) - Clear this option to stop fetching devices of the type “Workload”
  2. Additional Assets to Fetch - From the dropdown, select one or more additional asset types to fetch.
Note:

To learn more about Adapter Configuration tab advanced settings, see Adapter Advanced Settings.


APIs

Axonius uses the Illumio Core 24.2.10 REST API.

Required Ports

Axonius must be able to communicate with the value supplied in Host Name or IP Address via the following ports:

  • TCP port 8443

Required Permissions

The value supplied in Authentication User Name and API Secret must have at least read-only role.
That user can have also one of the following Roles: Organization owner, Administrator.

To generate Authentication User Name, API Secret and Organization ID:

  1. Log into the Illumio PCE web console.

  2. Click your name in the top right corner:

  3. Click My API Keys in the drop-down list.

  4. Click +Add in the window that appears:

  5. Fill in the Name (mandatory) and Description (optional).

  6. Click Save.

  7. Click Show Credentials:

  8. Copy and paste this information into a safe place. There is no way to
    retrieve it once you close this screen.

  9. Optionally, you may choose to download the credentials into a file by
    clicking on Download Credentials. Keep this file in a very safe place.


Version Matrix

This adapter has only been tested with the versions marked as supported, but may work with other versions. Please contact Axonius Support if you have a version that is not listed and it is not functioning as expected.

Version Supported Notes
V1 No
V2 Yes
