Schneider Electric EcoStruxure IT provides software and services for IT and Data Center teams to monitor and manage critical IT infrastructure on-premise, in the cloud, and at the edge.

Types of Assets Fetched

This adapter fetches the following types of assets:

  • Devices

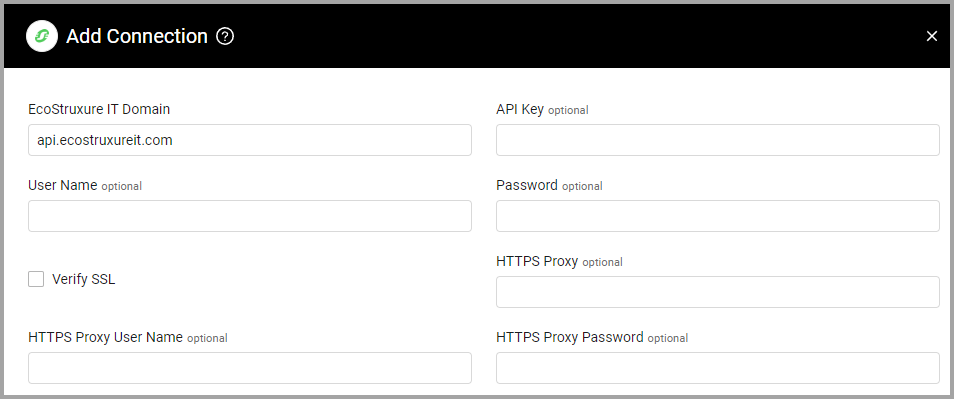

Parameters

  1. EcoStruxure IT Domain (required, default: api.ecostruxureit.com) - the hostname of the EcoStruxure IT API server, in the format api.ecostruxureit.com.
  2. User Name and Password (optional, default: empty) - The credentials for a user account that has the required permissions to fetch assets.
  3. API Key (optional, default: empty) - An API Key associated with a user account that has the required permissions to fetch assets.
Note:

Connect either using a user name and a password, or an API Key.

  1. Verify SSL (required, default: False) - Verify the SSL certificate offered by the value supplied in EcoStruxure IT Domain. For more details, see SSL Trust & CA Settings.

    • If enabled, the SSL certificate offered by the value supplied in EcoStruxure IT Domain will be verified against the CA database inside of Axonius. If the SSL certificate can not be validated against the CA database inside of Axonius, the connection will fail with an error.
    • If disabled, the SSL certificate offered by the value supplied in EcoStruxure IT Domain will not be verified against the CA database inside of Axonius.
  2. HTTPS Proxy (optional, default: empty) - A proxy to use when connecting to the value supplied in EcoStruxure IT Domain.

    • If supplied, Axonius will utilize the proxy when connecting to the value supplied in EcoStruxure IT Domain.
    • If not supplied, Axonius will connect directly to the value supplied in EcoStruxure IT Domain.
  3. HTTPS Proxy User Name (optional, default: empty) - The user name to use when connecting to the value supplied in EcoStruxure IT Domain via the value supplied in HTTPS Proxy.

    • If supplied, Axonius will authenticate with this value when connecting to the value supplied in HTTPS Proxy.
    • If not supplied, Axonius will not perform authentication when connecting to the value supplied in HTTPS Proxy.
  4. HTTPS Proxy Password (optional, default: empty) - The password to use when connecting to the value supplied in EcoStruxure IT Domain via the value supplied in HTTPS Proxy.

    • If supplied, Axonius will authenticate with this value when connecting to the value supplied in HTTPS Proxy.
    • If not supplied, Axonius will not perform authentication when connecting to the value supplied in HTTPS Proxy.
  5. For details on the common adapter connection parameters and buttons, see Adding a New Adapter Connection.


APIs

Axonius uses the EcoStruxure IT API.
