XCP-ng

XCP-ng is an open-source virtualization platform that offers enterprise-grade features for managing virtual machines.

Asset Types Fetched

  • Devices

Before You Begin

Ports

  • TCP port 443

Authentication Method

  • Token

APIs

Axonius uses the Xen Orchestra API.

Permissions

To retrieve task and activity data from the Xen Orchestra API, the API token must be associated with an account that has sufficient rights to:

  • Access the Xen Orchestra REST API
  • View infrastructure-wide task execution and VM operations
  • Retrieve task history and real-time task updates using watch, ndjson, or wait parameters

If the account does not have the appropriate role-based access (RBAC), the REST API requests to activity or task endpoints will return permission errors (401 Unauthorized or 403 Forbidden), or no data.

Recommended Steps:

  • Ensure the account generating the API token has Admin-level access in Xen Orchestra.

  • Verify the API token is valid and included in the Cookie header as authenticationToken=<your_token>.

  • Confirm that activity-related endpoints such as /rest/v0/tasks, /rest/v0/tasks/{uuid}, and related query parameters (watch, ndjson, wait) are accessible by the authenticated account.

Supported From Version

Supported from Axonius version 6.1.71

Connecting the Adapter in Axonius

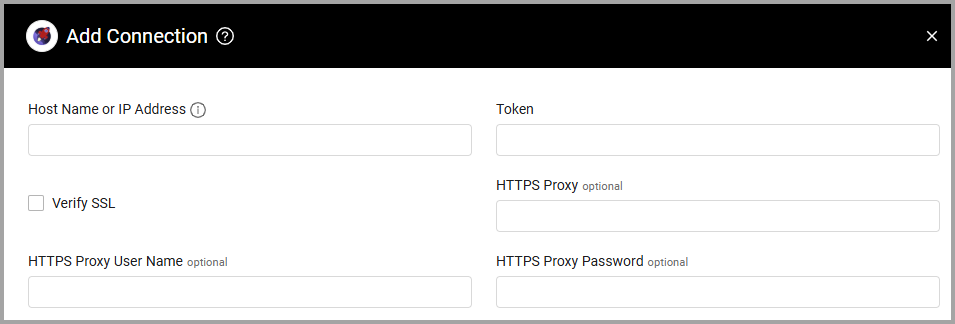

To connect the adapter in Axonius, provide the following parameters:

Required Parameters

  1. Host Name or IP Address - The hostname or IP address of the XCP-ng server.
  2. Token - An API Token associated with a user account that has the Required Permissions to fetch assets.

Optional Parameters

  1. Verify SSL - Select whether to verify the SSL certificate of the server against the CA database inside of Axonius. For more details, see SSL Trust & CA Settings.

  2. HTTPS Proxy - Connect the adapter to a proxy instead of directly connecting it to the domain.

  3. HTTPS Proxy User Name - The user name to use when connecting to the value supplied in Host Name or IP Address via the value supplied in HTTPS Proxy.

  4. HTTPS Proxy Password - The password to use when connecting to the server using the HTTPS Proxy.

To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.
