Symantec Endpoint Protection 14.x

Symantec Endpoint Protection 14.x manages events, policies, and registration for the client computers that connect to customer networks.

📘

Note This page describes how to connect Symantec Endpoint Protection 14.x deployments. To connect Symantec Endpoint Protection 12.x, see Symantec Endpoint Protection 12.x.

Asset Types Fetched

Devices

Before You Begin

Ports

  • TCP port 8446 (default)

Authentication Method

APIs

Axonius uses the Symantec Endpoint Protection Remote Management (SEMP) API.

Permissions

The following permissions are required:

  • A user account with permissions to fetch assets from the Symantec Endpoint Protection Manager (SEPM).
  • If using the SEMP Database connection: Read access to the SEMP database, specifically the agent_def_cache table.

Connecting the Adapter in Axonius

Navigate to the Adapters page, search for Symantec Endpoint Protection 14.x, and click on the adapter tile.
Click Add Connection.

To connect the adapter in Axonius, provide the following parameters:

Required Parameters

  1. Symantec Endpoint Protection Address - The hostname or IP address of the Symantec Endpoint Protection 14.x server.
  2. User Name and Password - The credentials for a user account that has the Required Permissions to fetch assets.
  3. Connection Label - A label to help you distinguish between multiple connections for the same adapter. See Connection label .

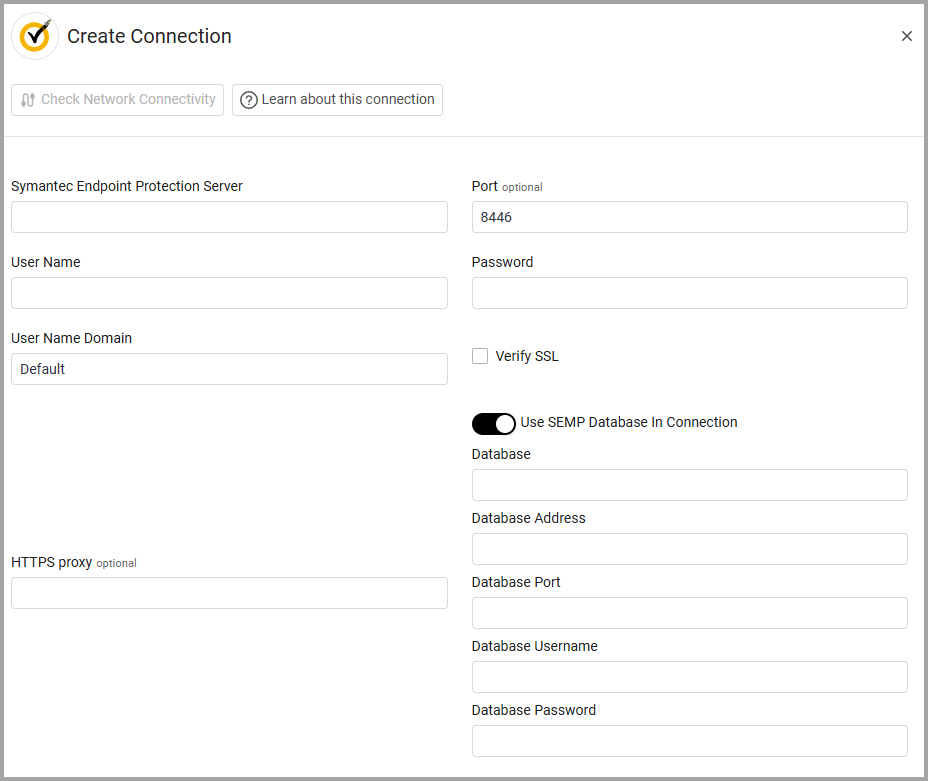

Symantec Endpoint Protection 14.x connection screen

Optional Parameters

  1. Port (default: 8446) - The port used for the connection.
  2. User Name Domain (default: Default) - Specify the Symantec Endpoint Protection domain, if defined. A domain is a structural container in the console that you use to organize a hierarchy of groups, clients, computers, and policies.
  3. Verify SSL - Select whether to verify the SSL certificate of the server against the CA database inside of Axonius. For more details, see SSL Trust & CA Settings.
  4. HTTPS Proxy - Connect the adapter to a proxy instead of directly connecting it to the domain.
  5. Use SEMP Database In Connection - Toggle on to connect the SEMP database and fetch data from it using the Fetch Device Definitions advanced setting. When you enable this setting, provide the following credentials to connect the SEMP database:
    • Database - The SEMP database name.
    • Database Address - The SEMP database server address.
    • Database Port - The SEMP database port.
    • Database Username and Database Password - The SEMP username and password.

  6. Select Gateway – Select the Axonius Gateway to use when connecting adapters whose sources are only accessible by an internal network and not from the primary Axonius instance, which may be an Axonius-hosted (SaaS) instance or Customer-hosted (on-premises / private cloud). To use this option, you need to set up an Axonius Gateway.

To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.


Advanced Settings

📘

Note:

Advanced settings can either apply to all connections for this adapter, or to a specific connection. Refer to ​Advanced Configuration for Adapters.

To learn more about Adapter Configuration tab advanced settings, see Adapter Advanced Settings.

  1. Fetch Device Definitions (requires database credentials) - Select this option to query device definitions from the agent_def_cache table in the SEMP database. To use this setting you need to enable Use SEMP Database In Connection in the adapter connection configuration.
