Azure DevOps (On-Prem)

Azure DevOps (On-Prem) is a Microsoft product that provides version control, reporting, requirements management, project management, automated builds, testing and release management capabilities.

Asset Types Fetched

• Users, Groups, Activities, Application Resources

📘

Note

By default, the adapter enriches Users (members) and Groups with Project and Team information.

Before You Begin

APIs

Axonius uses the Azure DevOps Server 2022 API.

Required Permissions

• Read permissions (for Code)

Connecting the Adapter in Axonius

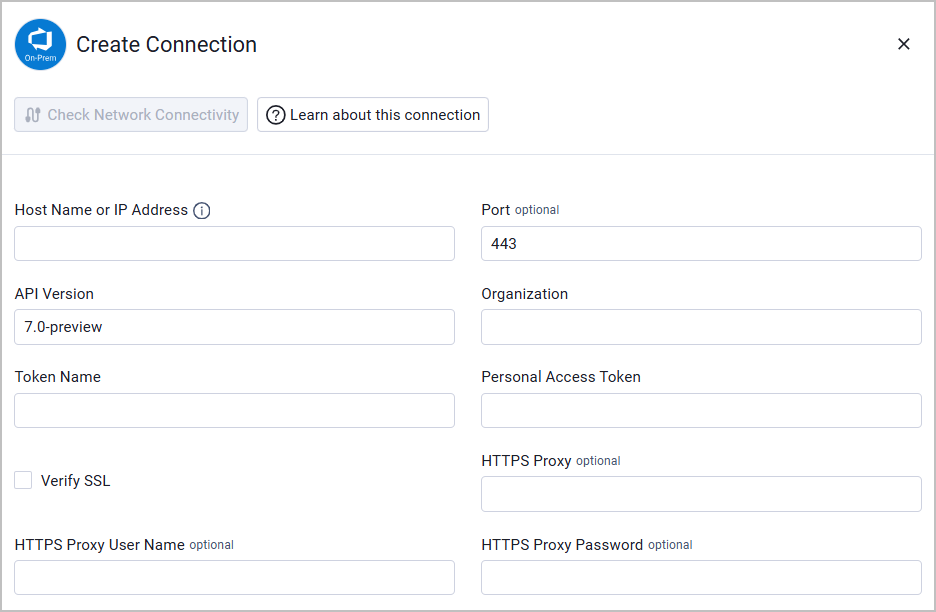

Required Parameters

1. Host Name or IP Address - The hostname or IP address of the Azure DevOps server.
2. API Version - Provide the API version. The default is 7.0-preview.
3. Organization - The organization name defined in the customer’s DevOps account.
4. Token Name - The name of the token you want to use.
5. Personal Access Token - The personal access token to access the Azure Devops. Refer to Use personal access tokens.

Optional Parameters

1. Port - If not supplied, Axonius will use TCP port 443.
2. Verify SSL - Select whether to verify the SSL certificate of the server against the CA database inside of Axonius. For more details, see SSL Trust & CA Settings.
3. HTTPS Proxy - Connect the adapter to a proxy instead of directly connecting it to the value supplied in Organization.
4. HTTPS Proxy User Name - The user name to use when connecting to the value supplied in Organization via the value supplied in HTTPS Proxy.
5. HTTPS Proxy Password - The password to use when connecting to the value supplied in Organization via the value supplied in HTTPS Proxy.

To learn more about common adapter connection parameters and buttons, see Adding a New Adapter Connection.

Advanced Settings

📘

Note

Advanced settings can either apply to all connections for this adapter, or to a specific connection. Refer to ​Advanced Configuration for Adapters.

Global Endpoints Config

1. Fetch Git Commits from the last X days (only if Fetch AuditActivities from Git Commits is enabled) - When enabling Fetch AuditActivities from Git Commits (see below), you can set the number of past days to fetch Git Commits (Activities) from that time period.

Endpoints Config

1. Fetch ApplicationResources from Git Repositories - Enable to fetch Git Repositories as Application Resources.
2. Fetch AuditActivities from Git Commits - Enable to fetch Git Commits as Activities. When enabled, the following setting becomes available:
   1. Enrich Git Commits with Git Repositories - Enable to enrich fetched Git Commits (Activities) with Git Repositories data.

📘

Note

To learn more about Adapter Configuration tab advanced settings, see Adapter Advanced Settings.

Version Matrix

This adapter has only been tested with the versions marked as supported, but may work with other versions. Please contact Axonius Support if you have a version that is not listed and it is not functioning as expected.
